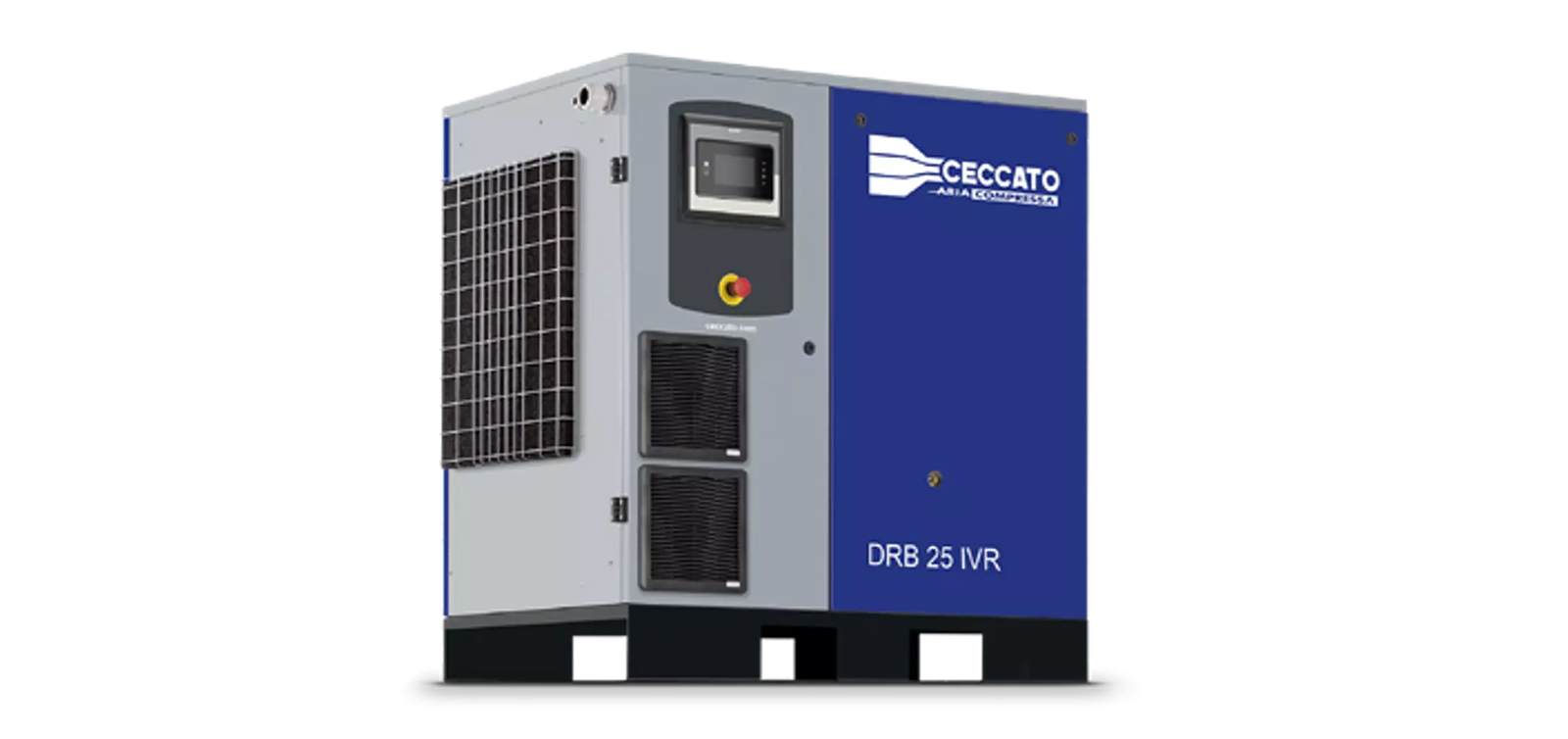

DRB 20 – 34 HP IVR
DRB 20 – 35 HP screw compressors with inverter technology offers excellent savings thanks to its IE3 motor, optimal cooling system and long pauses in maintenance. The variable speed screw compressor brings advantages for both short and long periods. Compared to the same DRB model with fixed speed, the energy savings can reach up to 35% and the compressor’s life-cycle costs are reduced by 25% on average.
The innovative design makes the product compact and integrated with efficient dryers in our “all-in-one” version. The compressor’s maintenance and cleaning can be done by a single person thanks to easy access to the components.
The controlling system ES4000 allows regulation of all parameters, such as temperature and pressure. You can also choose the updated version ES4000 Advanced, which allows you to schedule the compressor’s start and stop schedule. Both controllers can be integrated with wireless remote monitoring system ICONS and ECOntrol6i.
| Technical details | DRB 20 IVR | DRB 25 IVR | DRB 29 IVR | DRB 34 IVR |
|---|---|---|---|---|
| Motor power | 15 kW / 20 HP | 18 kW / 25 HP | 22 kW / 30 HP | 26 kW / 35 HP |
| Pressure | 5.5 – 13 bar | |||
| FAD* | 2.852 l/min | 3.334 l/min | 3.827 l/min | 4.157 l/min |
| Noise | 65 dB(A) | 70 dB(A) | 71 dB(A) | 72 dB(A) |
| Configuration | on Base and on Tank | |||
| Controller | ES4000 Standard | |||
| Optional controller | ES4000 Advanced with integrated Econtrol6i | |||
*FAD refers to 7 bar
