Compressed air stock, to supply huge air quantity requirements
Reduced energy waste, with stable temperature and airflow
More free space in your production place, vertical and to be installed next to the point of usage

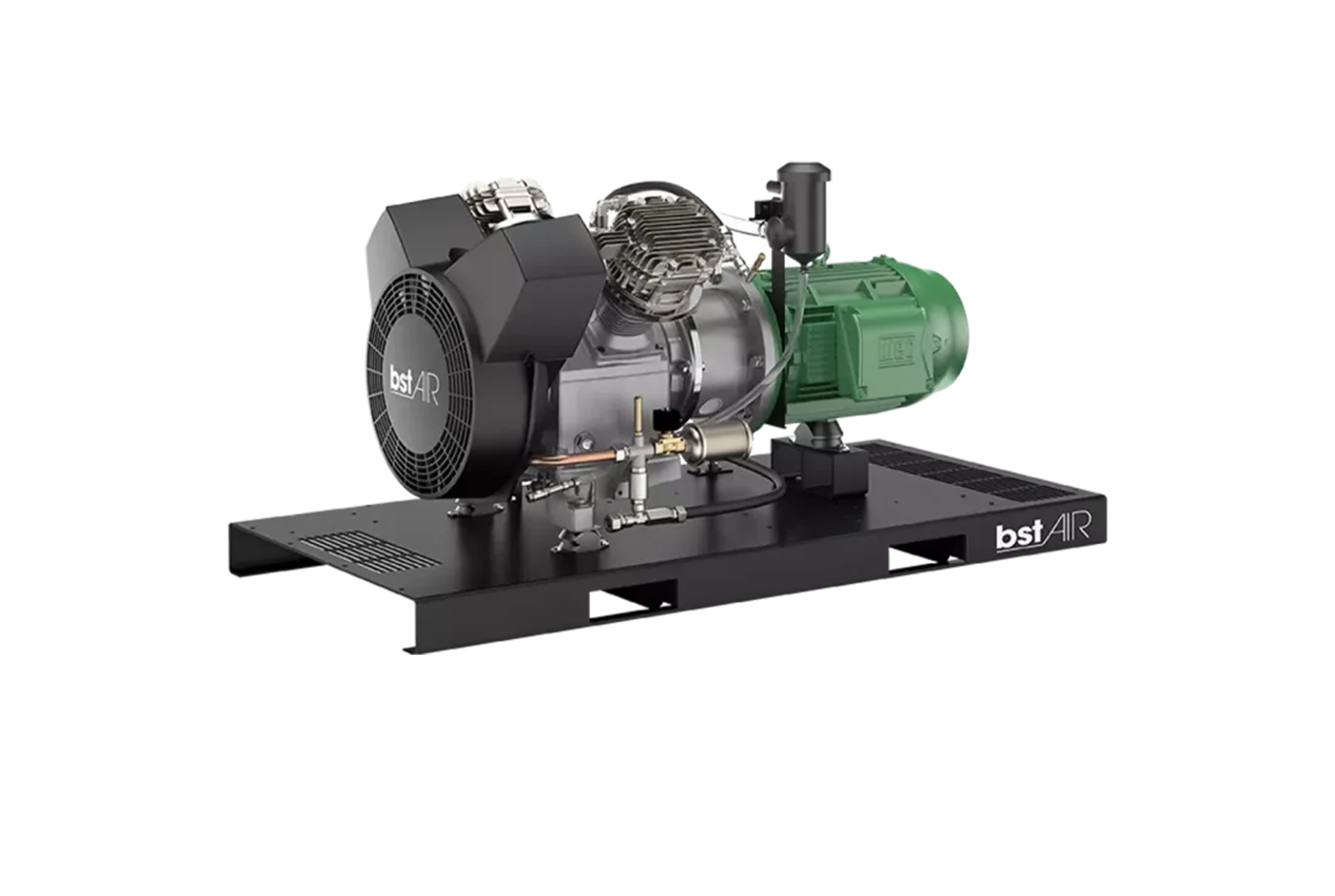

bstAIR
The bstAIR pressure elevators are designed for those industries and processes that require compressed air or nitrogen at high pressure, such as laser-cutting or blow moulding of PET and other plastics. They can be connected to low-pressure systems within your building, providing a pressure of up to 40 bar, with a loss from 0.4 m3/min to 3.6 m3/min.
The advantages of choosing bstAIR include lower maintenance costs, reliability and high attention to detail. They are equipped with a highly reliable, single-stage pumping system, which requires only quick maintenance and produces a high level of vibration. BstAIR is characterised by a slowly starting momentum, without electric peaks, and a gradual stop. For the heaviest use, you can choose a completely closed engine cooled with air.
BstAIR comes in two versions, both equipped with in-house internal products: the standard and the full-featured ones. The full-featured bstAIR has more pressure and temperature sensors, as well as the Advanced ES4000T and ICONS controllers.
Download the leaflet and ask for an expert opinion
bstAIR 15-20 leaflet EN
bstAIR 15-20 leaflet EN
Booster 40 – Ceccato English
Download the leaflet
Looking forward to buy this compressor?
| Technical details | bstAIR 10 – 40 | bstAIR 10 – 25 | bstAIR 15 – 40 | bstAIR 15 – 25 | bstAIR 20 – 40 | bstAIR 20 – 25 | bstAIR 25 – 40 | bstAIR 25 – 25 | bstAIR 30 – 40 | bstAIR 30 – 25 | bstAIR 40 – 40 | bstAIR 40 – 30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor power | 7.5 kW / 10 HP | 11 kW / 15 HP | 15 kW / 20 HP | 18.5 kW / 25 HP | 22 kW / 30 HP | 30 kW / 40 HP | ||||||
| Max. Inlet Pressure | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar |
| Max. discharge Pressure | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar |
| FAD* | 2,082 l/min | 1,536 l/min | 2,910 l/min | 2,220 l/min | 3,828 l/min | 2,928 l/min | 4,650 l/min | 3,906 l/min | 5,652 l/min | 4,650 l/min | 7,488 l/min | 6,168 l/min |
| Additional accessories | Tanks 40 bar High-pressure line filters High-pressure condensate drains ECOntrol6i |
|||||||||||
*FAD refers to 7 bar and all units are measured according to the ISO 1217
**Average noise level is measured according to the ISO 1251
bstAIR 300
Do you need a booster for a high-pressure air or nitrogen application such as bottle filling, pressure testing, laser cutting or gas handling? Or maybe you use it to manage peak consumption or as a back-up compressor? Count on the bstAIR 300. Available with a flow range from 0.20 m3/min to 0.83 m3/min, it is especially designed to give you continuous operation, maximum efficiency, and low noise levels.
BstAIR 300 grants you high-quality air. Their integrated purification system removes hence the residual oil. They guarantee a very comfortable workspace since the canopy reduces sound emissions considerably.
The bstAir 300 is built for high-pressure performance and reliability:
Multistage piston pump achieves a working pressure of 300 bar.
Inlet and outlet solenoid valves.
Inlet pressure sensor stops the booster when the inlet pressure is too high or too low.
Axial fan installed on the shaft of the booster provides cooling.
Combined forced and splash lubrication system.
Crankcase is vented via the oil separator and the oil breather to minimize oil consumption.
Download the leaflet and ask for an expert opinion
Ceccato DRC 40-60 HP IVR EN
Ceccato DRC 40-60 HP IVR EN
Looking forward to buy this compressor?
| Technical details | bstAIR 7 – 300 | bstAIR 10 – 300 | bstAIR 15 – 300 | bstAIR 25 – 300 |
|---|---|---|---|---|
| Motor power | 5.5 kW / 7 HP | 7.5 kW / 10 HP | 11 kW / 15 HP | 15 kW / 20 HP |
| Max. Inlet Pressure | 5 – 11 bar | 7 – 10 bar | 2 – 4 bar | |
| Max. radni pritisak | 300 bar | |||
| FAD* | 475 l/min | 645 l/min | 750 l/min | 830 l/min |
*FAD refers to 7 bar and all units are measured according to the ISO 1217
**Average noise level is measured according to the ISO 1251
