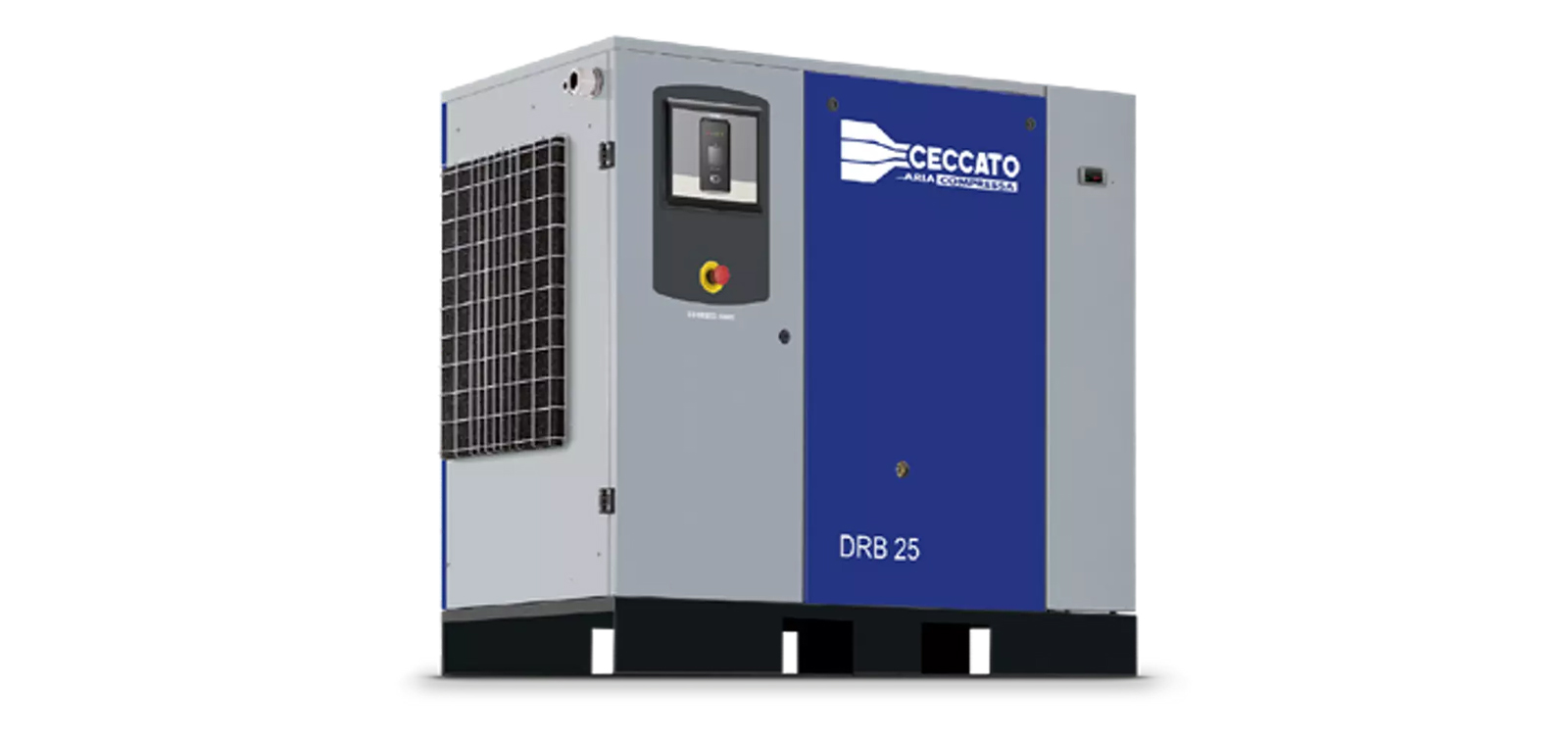

DRB 20 – 34 HP
DRB 20 – 35 HP is a fixed speed screw compressor with the lowest power for industries. It is equipped with belt transmission, which allows return on investment in two years. Highly stabile, Ceccato’s DRB 20 – 35 HP makes it a perfect choice for industries requiring running a long cycle and operating continuously.
With its compact design and low noise levels, the DRB 20 – 35 HP is easy to install in a compressor room or directly at the point of use. It can be used both as a primary or as a complementary compressor. DRB 20 – 35 HP is available in three configurations: tank-mounted, base mounted and/or with an integrated dryer.
Have a look at the range leaflet for more information
DRB 20 – 35 HP
Download the leaflet
Looking forward to buy this compressor?
| Technical details | DRB 20 HP | DRB 25 HP | DRB 29 HP | DRB 34 HP |
|---|---|---|---|---|
| Motor power | 15 kW / 20 HP | 18 kW / 25 HP | 22 kW / 30 HP | 26 kW / 35 HP |
| Pressure | 7,5 – 13 bar | 7,5 – 13 bar | 7,5 – 13 bar | 7,5 – 13 bar |
| FAD* | 2.694 l/min | 3.318 l/min | 3.858 l/min | 4.212 l/min |
| Noise | 67 dB(A) | 68 dB(A) | 69 dB(A) | 71 dB(A) |
| Configuration | On Base | On Base | On Base | On Base |
| Controller | ES4000 | ES4000 | ES4000 | ES4000 |
| Optional controller | ES4000 Advanced sa ICONS CLAMP |
*FAD refers to 7 bar
